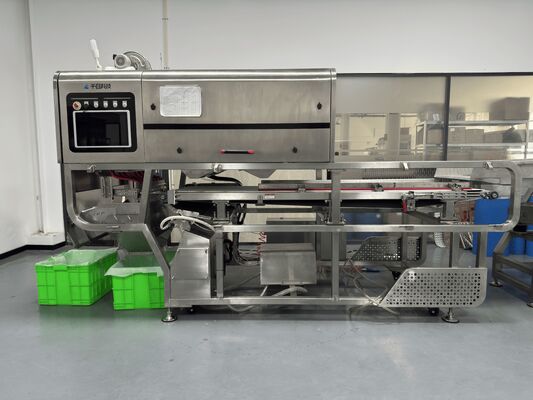

KMF600-2 Gummy Sorting Machine | Multi‑Category Defect Detection for Soft Candies
| MOQ: | 1 PC |
| Price: | CNY |
| Standard Packaging: | wooden case |
| Delivery Period: | 20-30 working days |
| Payment Method: | T/T |
| Supply Capacity: | 10 PCS per month |
KMF600-2 Gummy Sorting Machine | Multi‑Category Defect Detection for Soft Candies
Meta Description:
High‑precision AI sorting for gummy candies. Detects loose/adhered foreign objects, discoloration, deformation, text defects, holes, abrasion marks, and more. 10‑category classification for premium quality control.
① One‑Sentence Positioning
The KMF600‑2 Gummy Sorting Machine is purpose‑built for soft candy manufacturers — detecting 10 categories of defects with high precision, ensuring product consistency and food safety.
② Sorting Standard – 9+ Defect Categories (Based on Actual Customer Specification)
| Category | Defect Name | Description |
|---|---|---|
| Good | Acceptable | Smooth surface, clear text, elliptical contour, dark red gummy body — no obvious deformation |
| 1 | Loose Foreign Matter | Extraneous materials not attached to the gummy surface |
| 2 | Adhered Foreign Matter | Foreign objects attached to the gummy surface (occasionally seen in incoming material) |
| 3 | Retained | Specific defect category as defined by customer |
| 4 | Discolored / Mixed Material | Gummy with traces of different‑color candy on the surface |
| 5 | Severe Deformation | Outline clearly non‑elliptical; severely misshapen |
| 6 | Text Deformation | Incomplete or distorted text on the front surface |
| 7 | Small Tail | Partial protrusion on the gummy surface |
| 8 | Holes / Pits | Pinhole‑like or sunken holes on the surface |
| 9 | Abrasion Marks | Scratches or wear marks on the surface |
③ Why KMF600‑2 for Gummy Sorting?
High‑Definition for Subtle Defects
Gummy candies present unique challenges — glossy surfaces, translucent materials, and subtle defects like text deformation, small tails, and abrasion marks. KMF600‑2 uses high‑definition industrial cameras with enhanced resolution to capture fine details that standard‑definition systems may miss.
Multi‑Angle Imaging for Complete Coverage
Multiple cameras inspect gummies from different angles, detecting defects on the front, back, and edges simultaneously — ensuring no surface defect goes unnoticed.
Precise Color & Texture Detection
The system identifies discoloration, mixed materials, and surface imperfections with high accuracy, even when color differences are subtle — critical for maintaining brand‑consistent product appearance.
Gentle Handling for Soft Candies
Gummies are soft and prone to deformation or surface damage during conveying. The KMF600‑2 incorporates cushioned material flow and optimized drop heights to minimize mechanical impact, preserving product integrity.
Flexible Sorting Logic
Supports both full‑frame and partial‑frame selection modes, allowing operators to fine‑tune detection sensitivity for each defect category based on production priorities.
④ General Specifications (KMF600‑2)
| Parameter | Specification |
|---|---|
| Model | KMF600‑2 |
| Camera Configuration | High‑definition industrial cameras (multi‑angle) |
| Applicable Products | Gummy candies, soft candies, jelly‑type confectionery |
| Sorting Categories | Multi |
| Detection Capability | Foreign objects, discoloration, deformation, text defects, holes, abrasion marks, small tails, backside bubbles, and more |
| Voltage / Frequency | 220V / 50Hz (customizable) |
| Material | Food‑grade stainless steel |
| Operation | Touchscreen + keyboard/mouse |
| Remote Support | Yes (remote diagnostics and system updates) |
⑤ Why High‑Definition (KMF600‑2) is Essential for Gummy Sorting
Unlike fish ball sorting (which relies on color contrast and shape deviation), gummy sorting requires detection of fine‑surface defects:
-
Text deformation — characters may be partially missing or distorted
-
Small tails — minor protrusions on the surface
-
Abrasion marks — subtle scratches or wear
These defects are often tiny in size and require higher resolution to capture reliably. KMF600‑2's high‑definition camera system provides the necessary image clarity to detect these subtle defects consistently — making it the right choice for premium gummy manufacturers who require meticulous quality control.
